SY-10

Hydraulic Free Fall Shock Machine

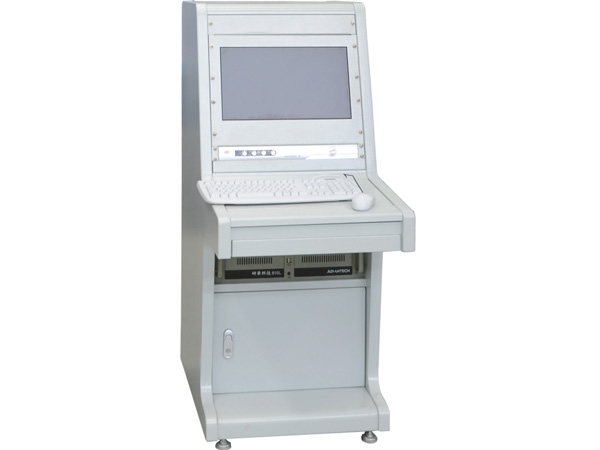

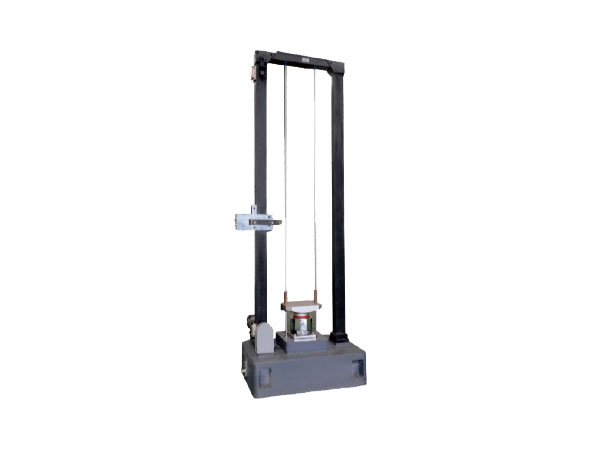

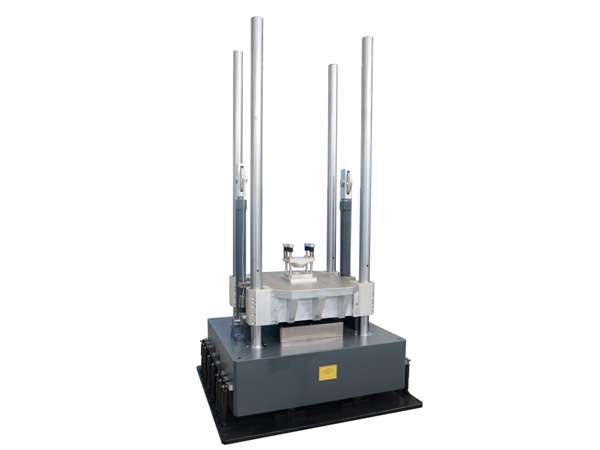

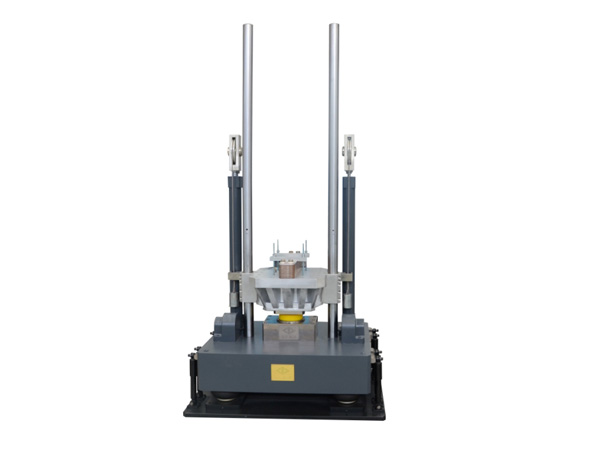

The SY-10 hydraulic free fall shock machine is ideal for simulating the shock suffered by different goods in a practical environment. It checks whether these goods have reliable functions and complete structures under shock.

As a shock tester, the hydraulic free fall shock machine can carry out a variety of impact tests such as the conventional half-sine wave, post-peak sawtooth wave, and the square wave, etc.

Functions and Characteristics
1. A combination of hydraulic balance lifting system and multi-rack guide column with large strength margin ensures stable lifting action and no noise.

2. The cast aluminum-magnesium alloy table is optimally designed, featuring high stiffness and small high-frequency clutter.

3. With large braking force, the built-in hydraulic braking mechanism can effectively avoid the secondary rebound.

4. The digital lifting height feedback control system guarantees the repeatability of the shock.

5. The hydraulic free fall shock machine is designed with a self-buffer base for greatly reducing the shock to the ground. Without a dedicated base, it is extremely convenient to be installed.

Main Specifications

Model SY10-2
Mechanical
SY10-5 SY10-25 SY10-50 * SY10-100 * SY10-200 ** SY10-400 ** SY10-600 ** SY10-1000 ** SY10-1500
Related Load (kg) 2 5 25 50 100 200 400 600 1000 1500
Table Size (mm) 200x200 200x200 300x350 480x500 650x800 800x960 1000 X1000 1200 X1200 1000 X1000
1200 X1200
1000x1200
1200x1200
Shock Waveform Half-sine Half-sine Post-peak sawtooth Half-sine Post-peak sawtooth Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid Half-sine Post-peak sawtooth Trapezoid
Shock Acceleration (m/s2) 200-15000 200-15000 150-1000 150-15000 150-1000 150-6000 150-1000 300-1000 150-6000 150-1000 300-1000 150-3500 150-1000 300-1000 150-1500 150-500 300-500 150-1500 150-500 300-500 150-1500 150-500 300-500 150-1500 150-500 300-500
Pulse Duration (ms) 11-0.8 18-0.5 18-6 30-0.8 18-6 30-1.5 18-6 12-6 30-1.5 18-6 12-6 30-2 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6 30-6 18-6 12-6
Dimension (L×W×H: mm) 900 x 510 x 2100 900x725x 2200 900x725x 2200 1260 x 960x 2600 1370 x 1000 x 2600 1560 x 1210 x 2600 1600 x 1210 x 2600 1620 x 1350 x 2600 1750x1500 x 2800 1950x1750x 2800
Weight (kg) 500 550 850 2500 3100 3800 4200 5100 6000 7000
Size of Oil Source (mm)   350×300×690 630×450×710 700X530X780
Volume of Oil Source   60L 60L 45kg/100L
Power Supply 0.3kW 380V 5060Hz 1.5kW 380V 50/60Hz 1.5kW 380V 50/60Hz 2.2kW
Standard GJB150 GJB360 GJB548 GB/T2423 JJG541 IEC60068-2-27
*Minimum Pulse Width 0.8ms
**Minimum Pulse Width 2ms
