    Multi-Axis Rate Table

    Multi-Axis Rate Table
    Inquiry Form

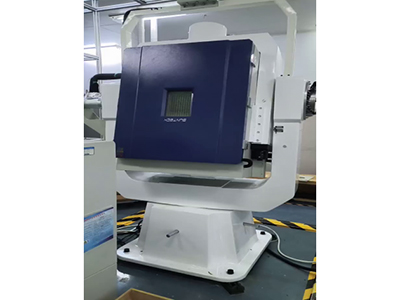

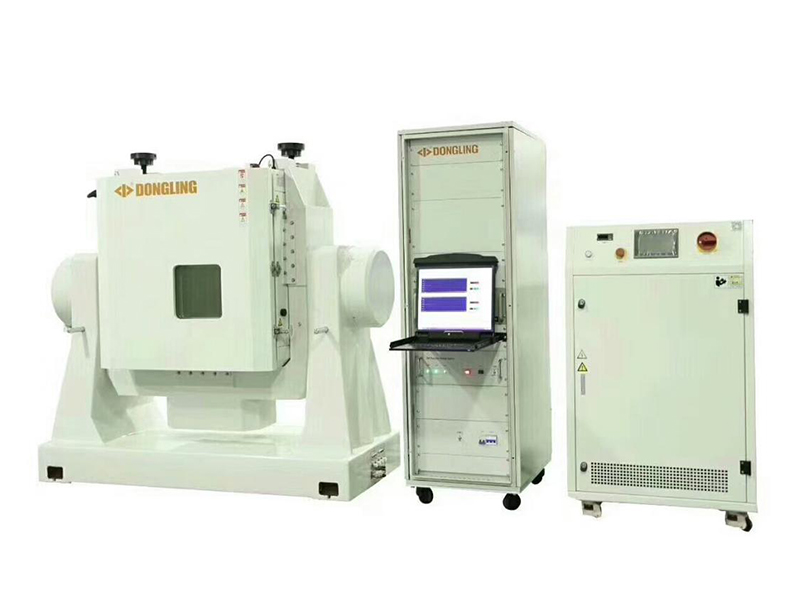

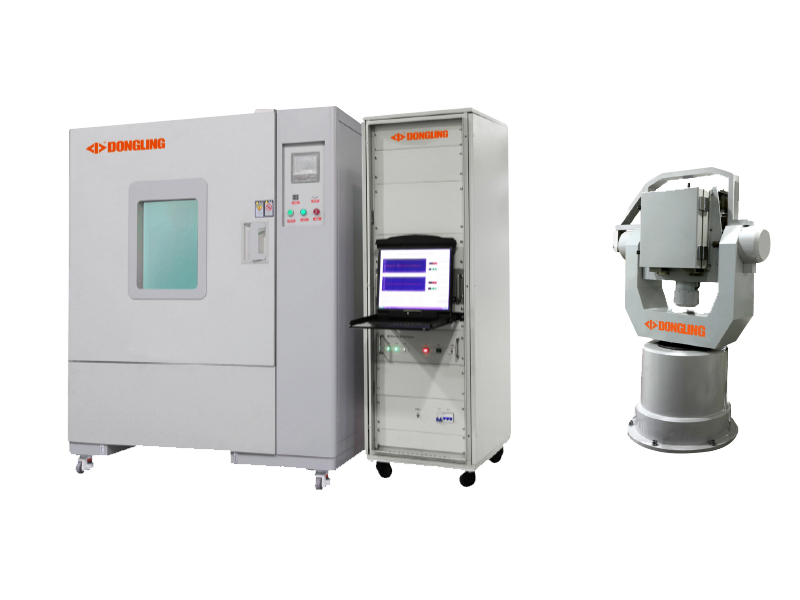

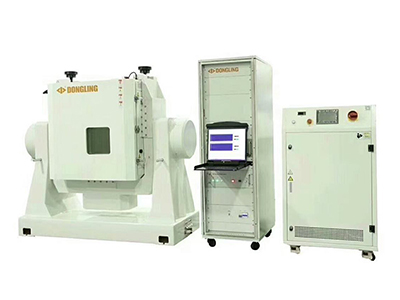

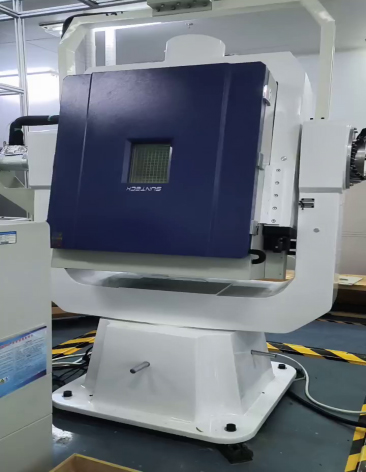

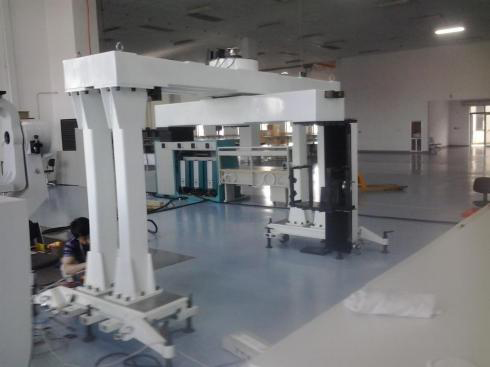

    The multi-axis multifunctional turntable consists primarily of a mechanical turntable, a temperature control box, a measurement and control cabinet.

    This mechanical turntable offers various functions including angular position, angular rate, swing, and centrifugal acceleration control. It can record and display real-time information data and also incorporates temperature control capabilities. The main purpose of the turntable is to provide precise positioning and speed reference for the load being measured. It can be used for both dynamic and static testing and calibration of inertial components and inertial navigation systems. Additionally, it can create high and low temperature, humidity, or vacuum test environments for the load being measured.

    The axis of the turntable is a precision mechanical axis, featuring an interface that transmits the electrical signal from the device under test.

    Furthermore, the rotary table is equipped with a standard interface for transmitting data information. Special measurement and control software can be utilized to control the operation of the rotary table and collect status data. Additionally, a communication protocol is available to enable users to control the rotary table and gather data through their own application programs.

    The turntable finds extensive applications in aviation, aerospace, navigation, weapons, vehicles, and other fields. Its primary uses include the verification and calibration of inertial navigation systems and inertial components, as well as simulating missile and aircraft attitude movements. Depending on the intended use, the turntable can be categorized as an inertial test turntable, simulation turntable, or customized turntable.


    Multi-Axis Rate Table
    Multi-Axis Rate Table
    Multi-Axis Rate Table

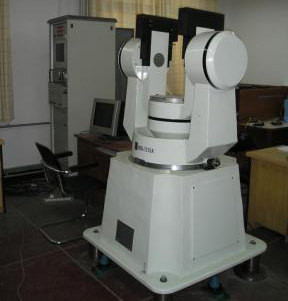

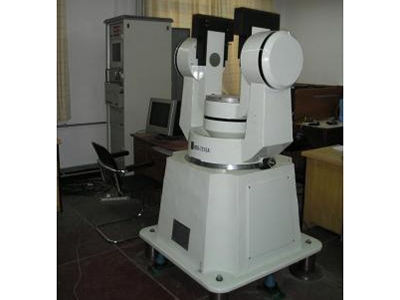

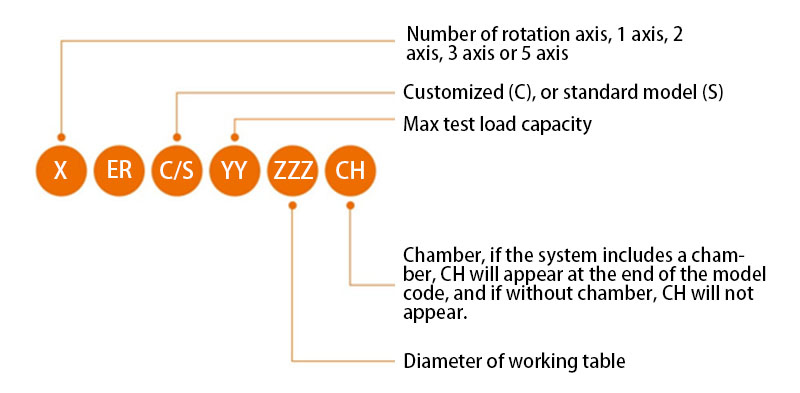

    Model 2ER60-700

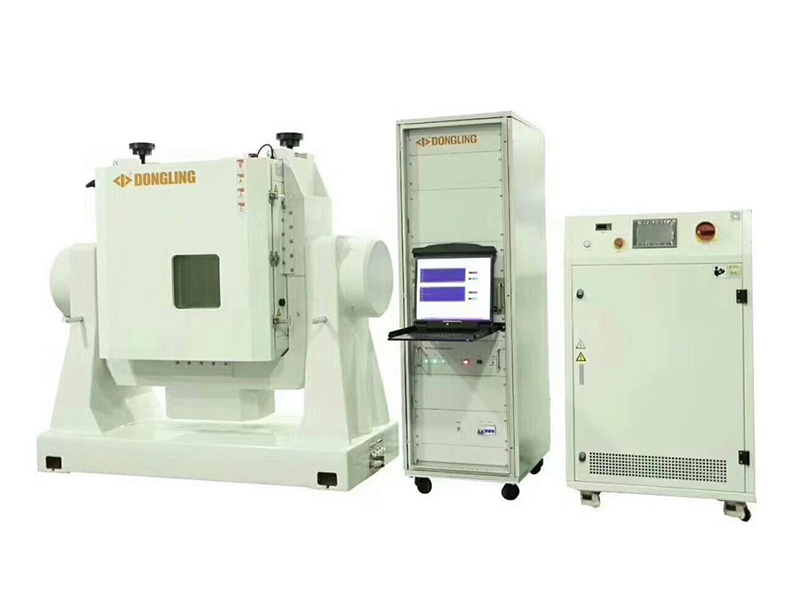

    2-Axis Rate Table with Temperature Chamber
    2ER50-500
    2-Axis Rate Table with Temperature Chamber
    3ER50-500
    3-Axis Rate Table with Temperature Chamber
    Table top diameter (mm) ø700 ø500 ø500
    Rotation axis directions 2 2 3
    Load capacity (kg) 60 50 50
    Table top runout (mm) 0.02 0.02 0.02
    Table top flatness (mm) 0.02 0.02 0.02
    Perpendicularity (") ±5 ±5 ±5
    Rotary accuracy (") ±2 ±2 ±2
    Position accuracy (") ±2 ±2 ±2
    Position resolution (°) 0.0001 0.0001 0.0001
    Repeatability (") ±2 ±2 ±2
    Range of motion 360° continuous 360° continuous 360° continuous
    Rate range (°/s) Inner/Outer
    1200 /600
    Inner/Outer
    ±600/ ±300
    Inner/Middle/Outer
    ±600/±300/±300
    Rate resolution (°/s) ±0.001 ±0.001 ±0.001
    Rate accuracy & stability (measured over 360 deg.) Better than 0.002% Better than 0.002% Better than 0.002%
    Acceleration (°/s²) Inner/Outer
    450 / 200
    Inner/Outer
    600 / 300
    Inner/Middle/Outer
    600/ 450/300
    Bandwidth Inner/Outer
    50Hz/20Hz
    Inner/Outer
    25Hz/10Hz
    Inner/Middle/Outer
    25Hz/15Hz/10Hz
    Temperature chamber space (mm) 750*750*650 550*560*500 550*560*500
    Temperature range (℃) -65~+125 -60~+85 -60~+85
    Temperature accuracy (℃) ±1 ±1 ±1
    Temperature rise rate (℃/min) 1-2 1-2 1-2
    Temperature stability (℃) ±1 ±1 ±1

    Multi-Axis Rate Table
    Multi-Axis Rate Table
    Multi-Axis Rate Table

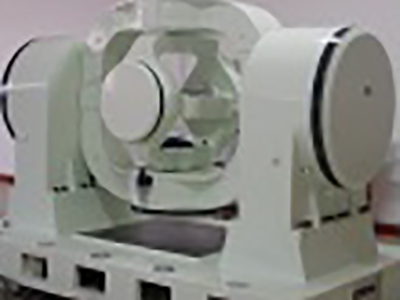

    Model KJ-3200C
    3-Axis Multifunctional Rate Table
    KJ-5200C
    3-Axis Multifunctional Rate Table
    FMS-1013
    Dynamic Target Motion Simulator
    Table top size (mm) ø300*400 ø500*500 ø800*800
    Rotation axis directions 3 3 1
    Load capacity (kg) ≥50 ≥50 ≥500Kg
    Table top runout (mm) 0.02 0.02 0.05
    Table top flatness (mm) 0.02 0.02 0.02
    Perpendicularity (") ±5 ±5 ±5
    Rotary accuracy (") ±2 ±2 ±5
    Position accuracy (") ±2 ±2 ±10
    Position resolution (°) 0.0001 0.0001 0.0001
    Repeatability (") ±2 ±2 ±5
    Range of motion 360° continuous 360° continuous 360° continuous
    Rate range (°/s) Inner/Middle/Outer
    600/ 500/ 300
    Inner/Middle/Outer
    600/ 500/ 300
    300°/s
    Rate resolution (°/s) ±0.0001 ±0.0001°/s ±0.0001°/s
    Rate accuracy & stability (measured over 360 deg.) Better than 0.002% Better than 0.002% -
    Acceleration (°/s²) Inner/Middle/Outer
    1200 /800 /600
    Inner/Middle/Outer
    1200 /800 /600
    600°/s²
    Bandwidth (double-ten) Inner/Middle/Outer
    10Hz/8Hz/ 6Hz
    Inner/Middle/Outer
    10Hz/8Hz/ 6Hz
    Inner: 5Hz

    Multi-Axis Rate Table
    Multi-Axis Rate Table
    Multi-Axis Rate Table

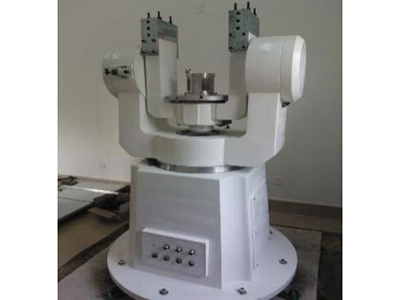

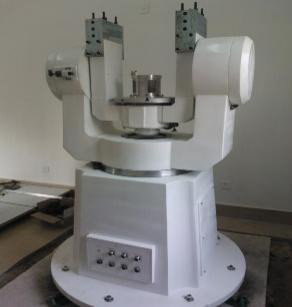

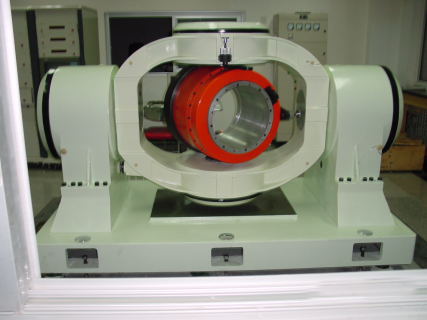

    Model FMS-3104
    3-Axis Flight Motion Simulator
    FMS-3117H
    3-Axis Flight Motion Simulator
    FMS-3014-01W
    3-Axis Flight Motion Simulator
    Range of motion Inner: ±180°
    Middle: ±90°
    Outer: ±180°
    Inner: continuous
    Middle: continuous
    Outer: continuous
    Inner: continuous
    Middle: continuous
    Outer: continuous
    Mounting surface size (mm) ∅500*500 400*400*400 ∅500*500
    Load capacity (kg) ≥50 ≥50 ≥50
    Angular position measuring resolution (°) ≤0.0001 ≤0.0001 ≤0.0001
    Angular position accuracy (″) ≤3 ≤2 ≤2
    Angular position repeatability (″) ≤1 ≤1 ≤1
    Angular velocity (°/s) Inner/Middle/Outer
    500/300/300
    Inner/Middle/Outer
    500/300/300
    Inner/Middle/Outer
    7200/300/300
    Max. acceleration (°/s) Inner/Middle/Outer
    5000/3000/3000
    Inner/Middle/Outer
    15000/7000/7000
    Inner/Middle/Outer
    7000/5000/3000
    Bandwidth (double-ten) Inner/Middle/Outer
    12Hz/10 Hz/8Hz
    Inner/Middle/Outer
    20Hz/18 Hz/15Hz
    Inner/Middle/Outer
    15Hz/12Hz/10Hz
