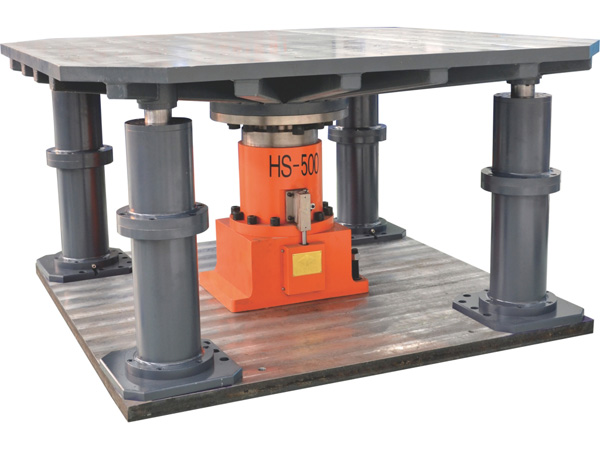

SY-70 Hydraulic Vibration Tester

SY-70 Hydraulic Vibration Tester
Inquiry Form

The SY-70 hydraulic vibration tester is a kind of dynamic testing machine. It adopts an electro-hydraulic servo valve for energy conversion and amplification that can convert high-pressure liquid energy into kinetic energy to guarantee the reciprocating motion of actuator.

The vibration testing equipment is applicable for the simulation of vibration suffered by the automobile, auto parts, various buildings, steel structures, aerospace goods, and the mechanical and electrical goods in actual environments. This will result in structure optimization and cost reduction.

Functions and Features
  • The hydraulic vibration tester can realize sine vibration, random vibration, multi-point excitation, shock and bump.
  • It provides low-frequency vibration, large force, and anti-explosion function, thus being ideal for the simulation of earthquake excitation and material mixing, etc.
  • High-strength table with cast aluminum or cast magnesium guarantees the uniformity and consistency of vibration, as well as high reproducibility. The deformation of the table is prevented.
  • Long-stroke vibration tests for large-mass and large-size goods can be completed by the hydraulic vibration tester.
Technical Parameters
Model SY70-1 SY70-2.5 SY70-5 SY70-10 SY70-15 SY70-20 SY70-40 SY70-50
Max. Thrust(kN) 10 25 50 100 150 200 400 500
Max. Load(kg) 200 250 600 1200 1800 3000 8000 12000
Frequency Range(kN) 1~120 1~120 1~120 1~100 1~80 1~80 1~60 1~60
Max. Displacement(mm) 50 50 50 50 50 50 40 30
Max. Speed(m/s) 0.4 0.4 0.4 0.35 0.35 0.3 0.2 0.17
Max. Acceleration (m/s²) 30 50 50 50 50 40 30 25
Table Size(mm) 500×500 600×600 800×800 1000×1000 1200×1200 1500×1500 1800×1800 2000×2000
Power Consumption(kW) 11 18.5 37 55 74 74 110 110
Dimension(L×W×H: mm) 500×500×800 600×600×800 800×800×800 1000×1000×1200 1200×1200×1200 1500×1500×1200 1800×1800×1500 2000×2000×1500
Power Supply Three-phase 380V,50/60Hz
Standard GB/T2423, GJB150A
Working Environment Temperature range: 0~40℃, Humidity range: ≤80%(non-condensing)
Remark This product can be customized upon request.
