SY-50

Transport Simulation Tester

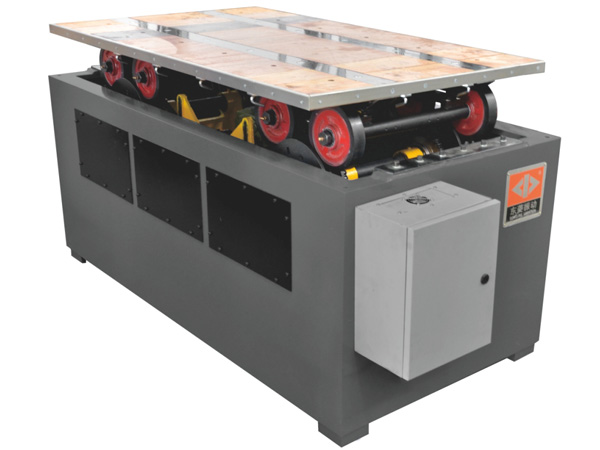

The SY-50 transport simulation tester is a laboratory machine used to simulate the anti-shock and anti-vibration performance of various goods with specific load transported by vehicles on highways. It provides a basis for the assessment or confirmation of goods and their packages according to the impact of actual conditions on the loading, unloading, transport, packing, sealing, or internal goods in lab tests.

Functions and Characteristics
1. Frequency brand approach method is utilized to simulate broadband random vibration. Each frequency band contains a primary natural frequency. Its power spectrum can be achieved by the transit simulation testing equipment.

2. Acceleration factor is adjustable.

3. AC variable frequency control is available.

4. Customers are only requested to place the transport simulation tester on flat marble or concrete ground. No special foundation is needed during installation.

Main Specifications

Model SY50-200 SY50-300 SY50-600 SY50-1000 SY50-1500 SY50-2000 SY50-3000 SY50-4000 SY50-6000
Max. Load (kg) 200 300 600 1000 1500 2000 3000 4000 6000
Vibration Waveform Broad-brand Random Vibration
Simulation of the Truck Speed 20 ~ 40km/h
Simulation of the Road Intermediate pavement of class-3 highway
Intermediate or low-type pavement of class-4 highway
Time Acceleration Level 1:1 (To be customized)
Height of Specimen COG (mm) <500 <600 <700 <700 <700 <700 <800
Working Table (mm) 1500x700 1500 x 700 2000 x1500 2400 x1700 2700 x1800 2700 x1800 4000 x 2500
Power Consumption (kVA) 2.2 3.7 7.5 11 18.5 30 37
Dimension (L×W×H: mm) 1920x850x960 1920x850x960 2550x1910x1360 2510x1920x1400 3000x2200x1600 3000x2200x1600 4500x2500x2200
Weight (kg) 1600 1800 5500 6000 7000 7550 10000
Power Supply Three-phase 380V, 50/60Hz
Working Environment Temperature range 0~40°C
Humidity range ≤80% (non condensing)
Remark 1. The size of working table can be customized upon request.
2. In time acceleration level, the 1:4 type is referred to SY50A, and the 1:6.3 type represents SY50B.
