SY-12

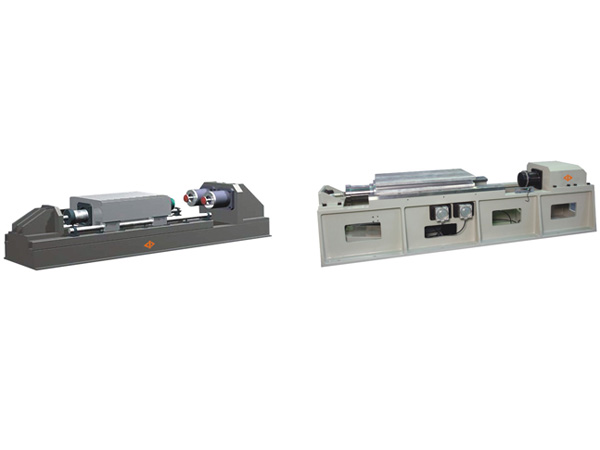

Horizontal Pneumatic Shock Test Machine

The SY-12 horizontal pneumatic shock test machine is referred to a horizontal impact tester. It is primarily used to simulate shock environments for the horizontal emission test of irreversible optoelectronic systems and elongated goods.

Functions and Features
1. By adoption of longitudinal impact technology, the horizontal pneumatic shock test machine offers small high-frequency clutter and high stiffness in the longitudinal direction.

2. Dependable pneumatic brake technology allows the horizontal pneumatic shock test machine to avoid the secondary rebound of the table.

3. All power is derived from a low-pressure cylinder, providing advantages such as high safety, high reliability, and easy maintenance.

4. A gas-liquid buffer device is specially designed for a large-sized horizontal shock tester. It will not only enormously reduce the shock suffered by base and ground, but also extend the service life of the equipment.

5. The expansion cylinder is a fast and convenient actuating element with superb impact repeatability. It allows shock overload value to be controlled by adjusting air pressure.

6. The integration of shock-tester control and measurement gives convenience for operation and measurement.

Main Specifications

Model SY12-50 SY12-100 SY12-200 SY12-400 SY12-600 SY12-1000
Rated Load (kg) 50 100 200 400 600 1000
Table Size (mm) 600 x 320 700x400 900x500 900x500 1000x580 1200x680
Shock Waveform Half-sine Trapezoid Half-sine Trapezoid Half-sine Trapezoid Half-sine Trapezoid Half-sine Trapezoid Half-sine Trapezoid
Shock Acceleration (m/s2) 150-6000 300-1000 150-3000 300-1000 150-3000 300-1000 150-3000 300-500 150-2000 300-600 150-1000 300-500
Pulse Duration (ms) 40-1.5 12-6 40-2 12-6 40-2 12-6 40-2 12-6 40-3 12-6 40-6 12-6
Dimension (mm) 2000x630x560 2200x660x600 2500x720x700 2670 x 720 x 700 3620x860x700 4200x960x800
Weight (kg) 1500 1800 2100 2200 3100 4500
Power Supply Three-phase 380V, 50/60Hz
Standard GJB150 GJB360 GJB548 GB/T2423 GJB1217 JJG497 MIL-STD-810F IEC68-2-27
Remark This product can be made as per customer requirements.
