SY-14

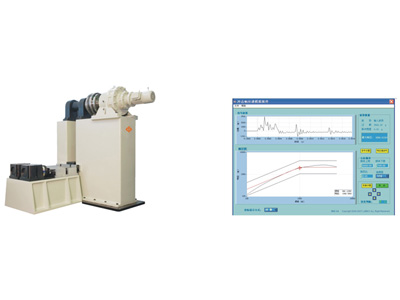

Shock Response Spectrum Machine (SRS)

The SY-14 shock response spectrum machine, abbreviated as SRS machine, is used to measure the anti-shock performance of electronic products or packages. It determines whether specimens maintain reliable functions and complete structures in shock environments.

The shock response spectrum is resulted from a series of single-degree-of-freedom linear systems with different natural frequencies which are subjected to the same shock excitation response. The maximum value of shock response represents the maximum stress applied on our product. Therefore, the shock response spectrum machine allows shock wave and shock energy to be well simulated from real environments.

Functions and Features
1. Our shock response spectrum machine adopts the most advanced type of Windows2000/XP-based control system. The Shock DAQ series spectrum control measuring instrument can accurately accomplish all impact tests only by inputting the height of impact hammer by an operator.

2. The pendulum incentive mechanism adopted features simple structure.

3. Infinitely-Adjustable Shock Energy

4. The use of an electromagnetic clutch brake mechanism provides quick response and large braking force.

5. The shock response spectrum testing equipment comes with a base. It is characterized by small footprint and easy installation.

6. The standard and tolerance of shock response spectrum inside the system give users convenience for adjustment and application. A test report is automatically generated at the end of a test.

Main Specifications

Model SY14-50 SY14-100 SY14-150 SY14-200
Load (kg) 50 100 150 200
Table Size (mm) 600x600 600 x 600 900x900 1200x1200
Response Frequency Range ** 100-10000Hz 100-10000Hz 100-5000Hz 100-5000Hz
Max. Response Acceleration (m/s2) 50000 50000 50000 30000
Dimension (L×W×H: mm) 1850x1250x1800 1850x1250x1800 2000x2300x1800 2400x2700x1800
Weight (kg) 3600 4000 4500 5000
Power Supply Three-phase 380V, 50/60Hz
Working Environment Temperature range 0~40°C
Humidity range ≤80% (non condensing)

**Response from 10Hz is available.
